Advantages of Zuoer Products:
- Convenient to assembly and maintain.
- All color could be available.
- Can bear High mechanical strength.
- Excellent product handling performance.
- Wear resistance and Oil Resistant.
We are committed to offer best quality products and competitive prices. With our pioneering spirit, Zuoer can provide mature solutions and give you the competitive edge. Any Questions Just Call +86-18939916146.
Product Description:

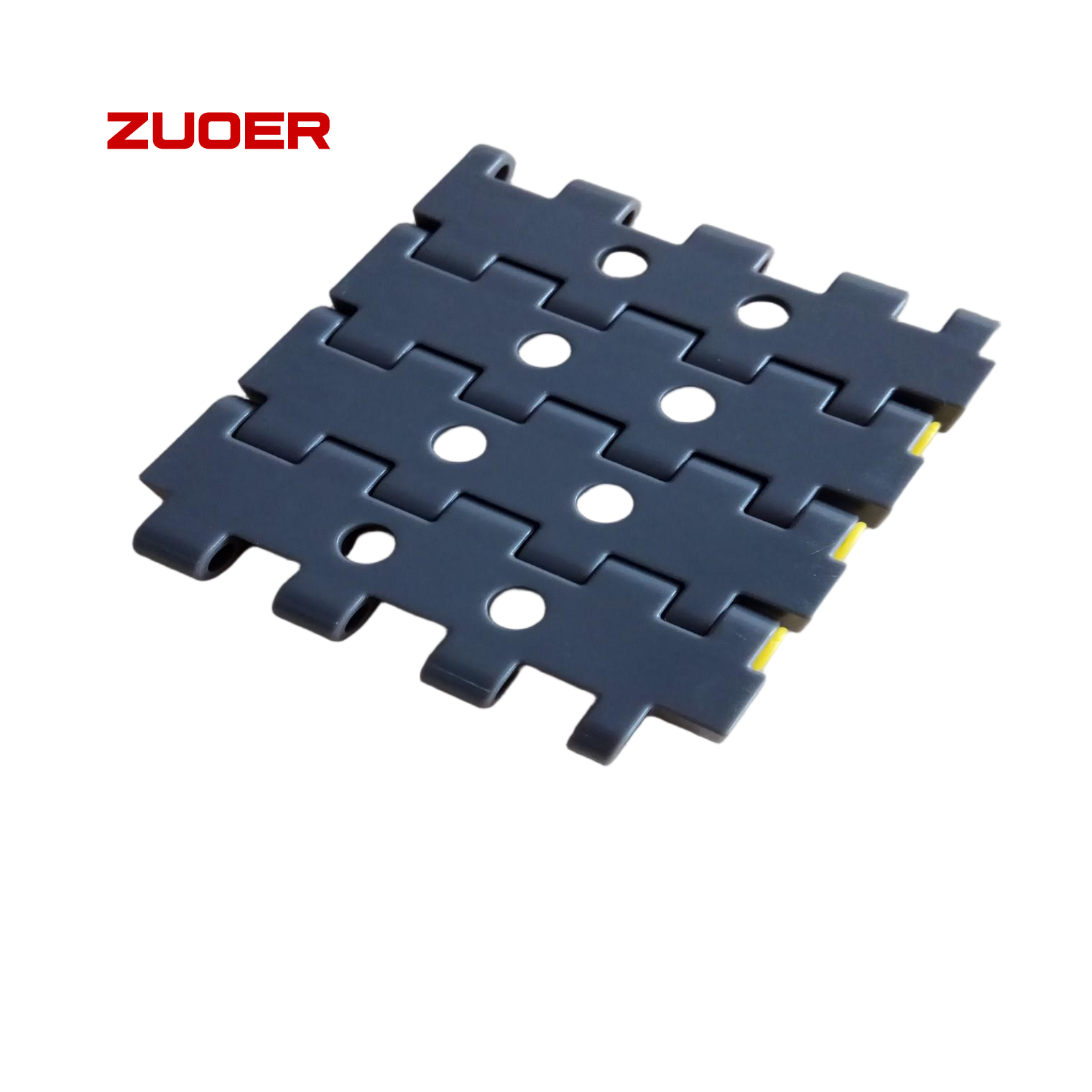

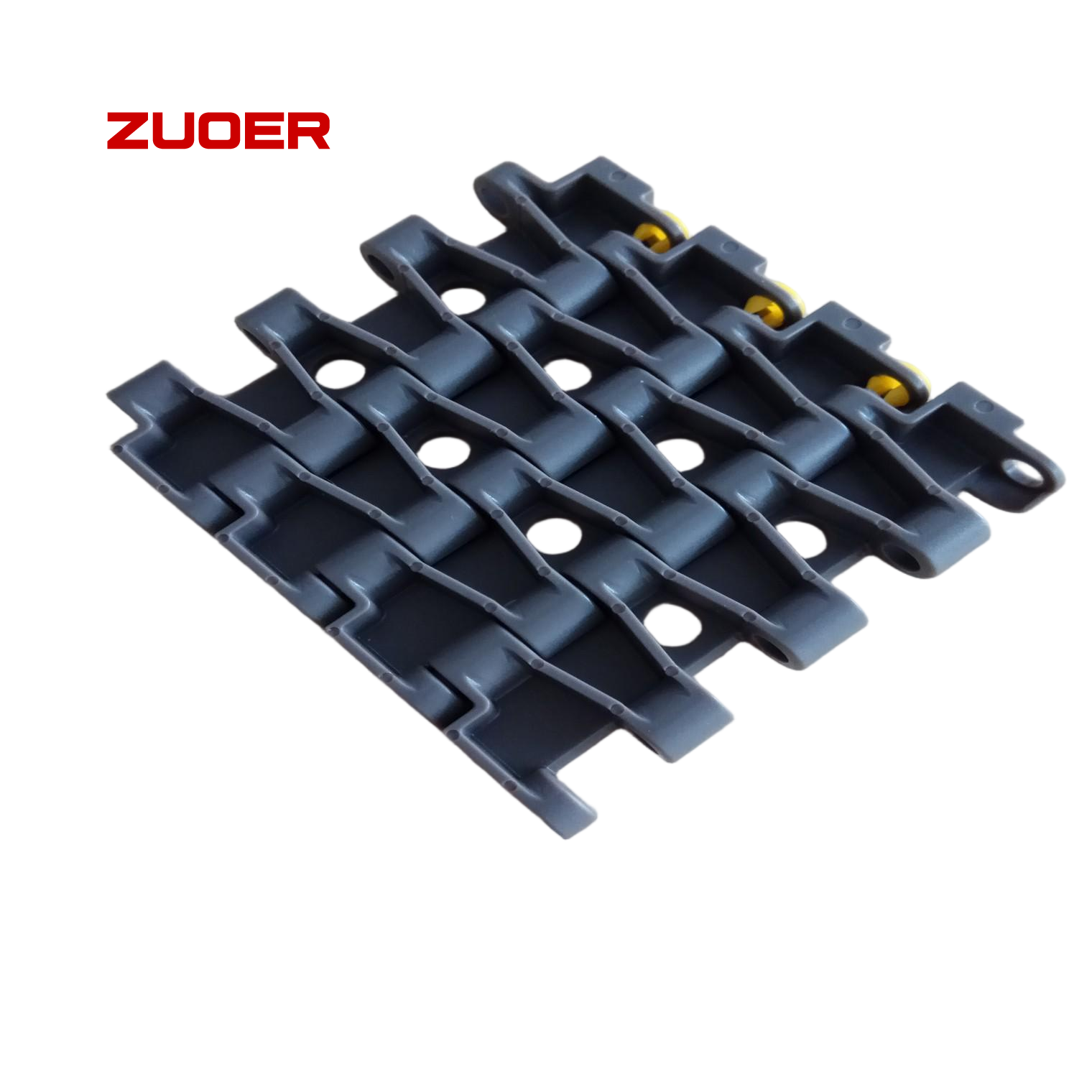

5930 series modular belts are suitable for light and medium loads in canning manufacturing,canning conveying and food industry. Flat top type is suitable for PET containers and other light products. 16%opening area of long hole type can ensure the best flow
of water and air.It is suitable for canning manufacturing and canning processing industries.Vacuum openings are used in vacuum conveyors in canning lines. 5930 production reinforced flight is mainly used for conveying bottle cap.
| Material | Pin material | Working load | Weight | W Standard width(mm) |
| N/M(21℃) | (Kg/m2) | Single piece width | ||
| POM | PP | 13000 | 0.55 | 76.2 |
| PA | 14000 | 0.6 | Remarks:N n for integer times increasing;W for standard width;Because the material shrinkage rate is different,the actual width of the net belt tolerance is 0.2% [please contact our company before customizing] | |
| PP | PP | 7000 | 0.35 | |

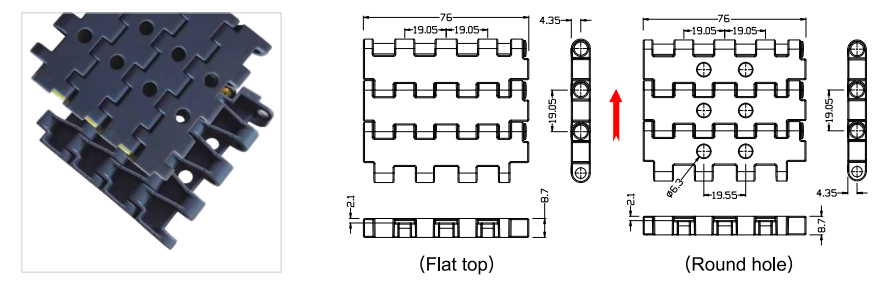

| Pitch(mm) | Pin dia.(mm) | Back flex(min)mm | ||
| 19.05 | 4.8 | 25 | ||
Rich Experience: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Real manufacturer, in stock. We have Over 20 years experience in industry with high quality products and wonderful team. Small order is accepted. No minimum quantity limit and we treat every order well.
Quality Inspection: Zuoer prides itself in supplying quality, genuine and original manufacturer parts of a wide range products. We strive to provide the highest quality of service to our retail and wholesale customers, looking to build long-lasting and meaningful relationships. We understand the frustration of finding the correct quality Components, so we are always here to help you with the process.
Unrivalled Service: The wealth of knowledge imparted by over 20 years of experience in the industry means that we can provide the best service and outcome possible for you. We have a highly trained team of staff that are willing to guide you on the path to achieving your goal. Come and experience unrivalled quality and service with Zuoer.
Zuoer has become one of the largest and most complete manufacturers of conveyors, mesh belts and chains in China. Our customers are from the Europe, America, Africa, Southeast Asia, Japan, South Korea. We have most skillful R & D team in the industry to satisfy various needs from global customers.
In order to maximize the benefits of our target customers, our mission is to provide cost-effective products for our target customers. Zuoer believes that technology is the resource of innovation and innovation spurs development. Thus it has established its own R&D center for new products. With its corporate philosophy “Responsibility, Efficiency, Innovation”, Zuoer is willing to establish business relationship all over the world.
We are committed to offer our clients with the best quality products and competitive prices. We strive for quality in everything that we do. With our pioneering spirit, Zuoer can provide mature solutions and give you the competitive edge. Any Questions Just Call +86-18939916146.
Q1. What is a conveyor system?
Conveyor systems are usually defined as a conveyor, or group of conveyors, working in concert with each other or other machinery to achieve a goal. In general, if your application requires multiple conveyors working either in concert with each other or with other machinery, it’s a “system” by definition.
Q2. What’s the biggest benefit of a conveyor system?
The biggest reason to install a conveyor system is that it can automate materials movement and reduce the “hands-on” jobs of feeding a machine, moving a carton, or rotating a pallet. Conveyor systems free people for more appropriate, value-added tasks.
Q3. What is Zuoer’s systems design process?
We’ve been designing material handling systems for nearly five decades and have a systematic approach to system design. Our Systems Integration Group is deeply knowledgable and experienced, and can provide full design services for most any application and operation type.
Q4. How will my project be implemented?
We specialize at project management, so we’ll provide a complete roadmap at the start of the process. It’s a difficult task to recreate product flow from the start in a production plant, but we’ve done that many times.
Q5. What about food-grade or stainless applications?
Conveyor systems are routinely used in food processing, medical, pharmaceutical, and other clean applications. These systems can be built with stainless, plastic chain and other materials that serve the needs of these types of applications.
Q6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your products before delivery?
Yes, we have 100% test before delivery.
Q8. How do I choose the right conveyor accessories for my system?
To choose the right conveyor accessories, first assess your system’s specific needs, such as load type, speed, and environment. Next, consider factors like durability, compatibility with existing equipment, and maintenance requirements. Any Questions Just Call 0086-21-67685121.
Innovative One-stop Service
By offering excellent product quality, the company has enjoyed a consistent growth. Zuoer has built a solid reputation by designing, manufacturing and fabricating high quality products in innovative way for variety markets.
We are proud to present Zuoer products which were recommended by our customers from all over the world, strict quality inspection has obtained ISO9001, environmental system and CE ceritification.
